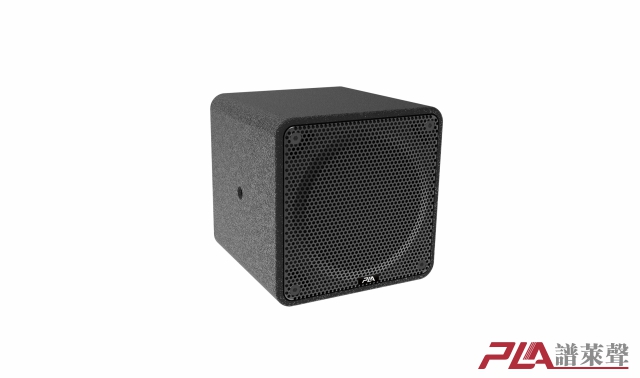

PS5P

Features：

● Adopting imported birch wood, the overall appearance is small and exquisite

● built-in Amplifier circuit, Self-powered output, self-contained

● high-efficiency 5.5-inch Full Range band unit

● D-AMP (Class D Amp lifier) Digital Amplifier Circuit Technology

● MLC(Microphone&Line Combined Input)Preamplifier Circuit Technology

●With CPS (Coaxial Point Source) technology

Technical Specification

Frequency Response：100Hz~20kHz(±3dB)，80Hz~20kHz(-10dB)

Nominal Coverage(-6dB)：110°(H) x 110°(V)

Sensitivity(@1w/1m)：95dB

Power rating：150W

Impedance：8 ohm

Maximum SPL：123dB SPL peak

Drivers：1x5.5""All Weather Woofer ,

     1×1.75"Phase-corrected compression tweeter

Power specifications：100~240V，50/60Hz

HF/LF Adjustment：-∞~0dB，Software control via USB connection to PC

Power Input

Mic In/Line In：Neutrik XLR Input Jack, 35mV@Mic In

Bluetooth In：BT In,20K ohms

Link Out：Neutrik XLR In/Out Socket, 0.775V@Line In

Physical Data

Dimensions(WxDxH)：170x170x193mm

Weight：3.8kg

Material：Imported multi-layer birch board, surface

environmental protection PUA polyurea

waterproof anti-corrosion coating

Finish：Black polyurea paint

Applications

Meeting room、Background music
