PS8P

Features

●Adopting imported birch wood, the overall appearance is small and exquisite

● built-in Amplifier circuit, Self-powered output, self-contained

● high-efficiency 8-inch Full Range band unit

● D-AMP (Class D Amp lifier) Digital Amplifier Circuit Technology

● MLC(Microphone&Line Combined Input)Preamplifier Circuit Technology

● With FCT(Full frequency Coherent Technology) technology

Technical Specification

Frequency Response:70Hz~18kHz(±3dB)，62Hz~20kHz(±6dB)

Nominal Coverage(-6dB):100°(H) x 100°(V)

Sensitivity(@1w/1m):96dB

Power rating:250W

Impedance:8 ohm

Maximum SPL:126dB SPL peak

Drivers:1x8"full-range unit

Power specifications：100~240V，50/60Hz

HF/LF Adjustment: ±12dB/±12dB

Power Input

Mic In/Line In:TWO Neutrik XLR input 35mV@Mic In 0.

0.775V@Line In,20K ohms

Link Out: Neutrik XLR loop-through output

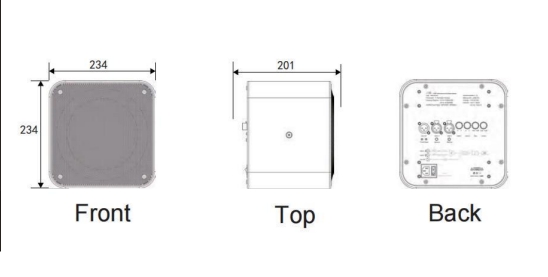

Physical

Dataimensions(WxDxH):234x201x234mm

Weight:5.5kg

Material: Imported multi-layer birch board, surface environmental protection

               PUA polyurea waterproof anti-corrosion coating

Finish:Black polyurea paint

Applications:Meeting room、Background music
